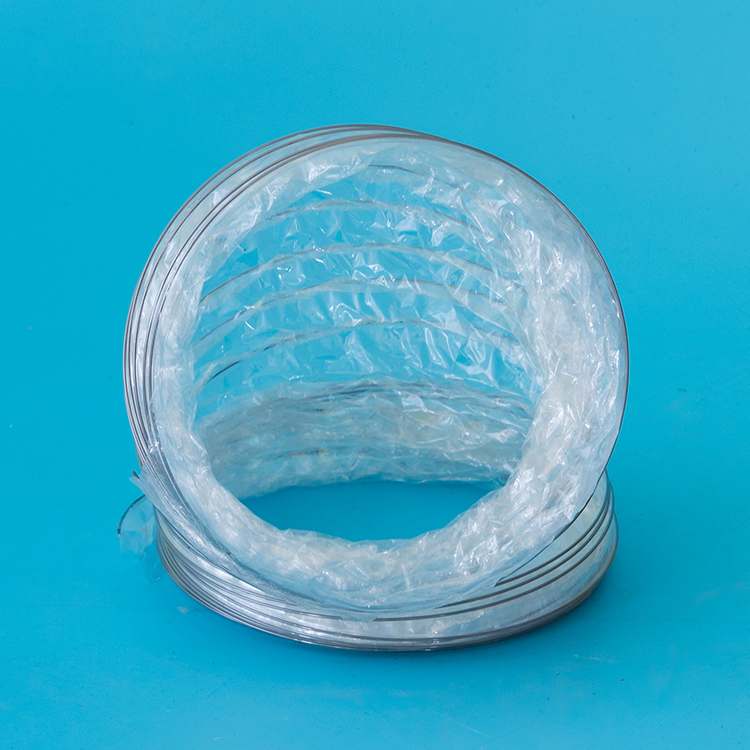

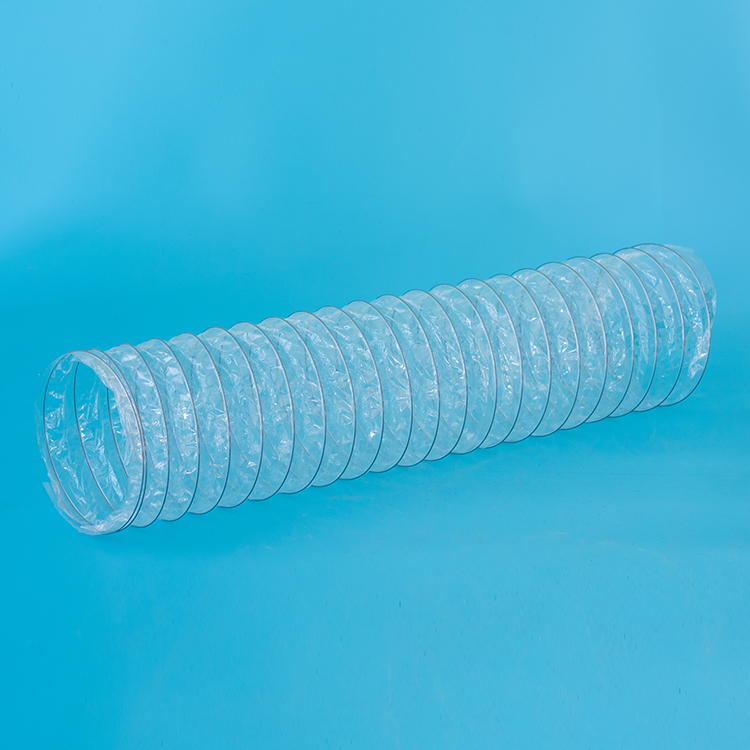

PET Flexible Duct
PET軟管
|
Product Code |
XY-105 |
產品編碼 |
XY-105 |
|
Construction |
1 PET film |
材料 |
1層PET |
|
Color |
Transparent/Black |
顏色 |
透明/黑色 |
|
AvailableDiameter |
40mm-650mm (1.5"-25") |
直徑範圍 |
40mm-650mm (1.5"-25") |
|
Carbon Steel Wire Diameter |
0.6mm-2.5mm |
鋼絲直徑 |
0.6mm-2.5mm |
|
StandardLength |
10m(Max) |
標準長度 |
10m(Max) |
|
Thickness |
0.025mm-0.027mm |
厚度 |
0.025mm-0.027mm |
|
Fire Resistance |
Class B1 |
防火等級 |
B1級，阻燃 |
|
CompressRatio |
1: 25 |
壓縮比 |
1：25 |
|
Temperature Range |
-20℃/+80℃ |
溫度範圍 |
-20℃/+80℃ |
|
Operating Pressure |
3000Pa |
最大壓力 |
3000Pa |
|
Maximum Air Velocity |
最大風速 |
30m/s |
PET伸縮軟管采用PET膜複合膜繞帖高彈性螺旋形強韌鋼絲製作而成。
拉直後自持性好、風阻小、清潔衛生，遇到高溫或火警時，不產生有毒氣體，適用於高、中、低壓的空調及通風係統，安裝便捷。
Made of spiral steel wire laminated with PET film.
Self-holding during usage and low wind resistance.
No toxic gases release at high temperature or in the case of fire alarm.
Ideal for using in general purpose exhaust applications.
